Ultra-thin Design 16800LM High Power 120W Led Street Light
Product Item:HL-2SL-120W
Description
Ultra-thin Design 16800LM High Power 120W Led Street Light
Technical Data:
| Item Name |
120W LED Street Light |
| Power |
120W |
| Light Source |
Osram Philips |
| LED Quantity |
SMD2835-192pcs SMD5050-144pcs |
| LED Driver |
Sosen Meanwell ELG Meanwell XLG |
| Input Voltage |
AC85-265V |
| Color Temperature |
3000-6500K |
| Light Efficiency |
140LM/W |
| Lumen |
16,800lm |
| CRI |
80 |
| Power Factor |
0.95 |
| IP Rating |
IP66 |
| Beam Angle |
T2-M, T3-M, TP1-5(S-M) |
| Materials |
Aluminum |
| Operating Temp. |
-25°C to +45°C |
| Applications |
Trunk Road, Highways, Urban Street, Sidewalks Road, Overpasses, Driveway |
|
Qty/CTN |
1PC |
|
G.W. |
4.5KG |
|
Lamp Dimensions |
519*297*111mm |
|
Carton Size |
56×34×15cm |
| Lifespan |
50,000 Hours |
| Quality Warranty |
5 Years |
| Certificates |
CE, ROHS, EMC, LVD, ISO9001 |
Watts & models:
| Model | Power | Lumens | Gros Weight | Dimension |
| HL-2SL-30W |
30W |
4,200LM | 3KG |
424*208*94mm |
|
HL-2SL-50W |
50W |
7,000LM | 3KG |
424*208*94mm |
|
HL-2SL-60W |
60W |
8,400LM | 3KG |
424*208*94mm |
|
HL-2SL-80W |
80W |
11,200LM | 4.5KG |
519*297*111mm |
|
HL-2SL-100W |
100W |
14,000LM | 4.5KG |
519*297*111mm |
|
HL-2SL-120W |
120W |
16,800LM | 4.5KG |
519*297*111mm |
|
HL-2SL-150W |
150W |
21,000LM | 5.5KG |
610*297*111mm |
|
HL-2SL-180W |
180W |
25,200LM | 5.5KG |
610*297*111mm |
|
HL-2SL-200W |
200W |
28,000LM | 6.5KG |
700*297*111mm |
|
HL-2SL-240W |
240W |
33,600LM | 6.5KG | 700*297*111mm |

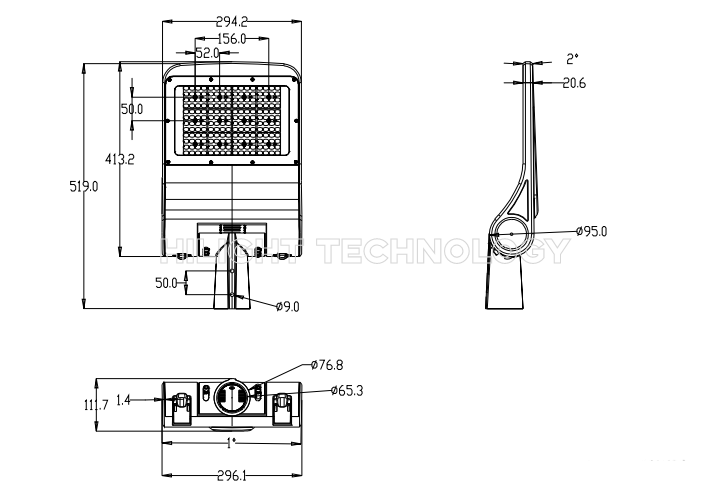

Dimensions:

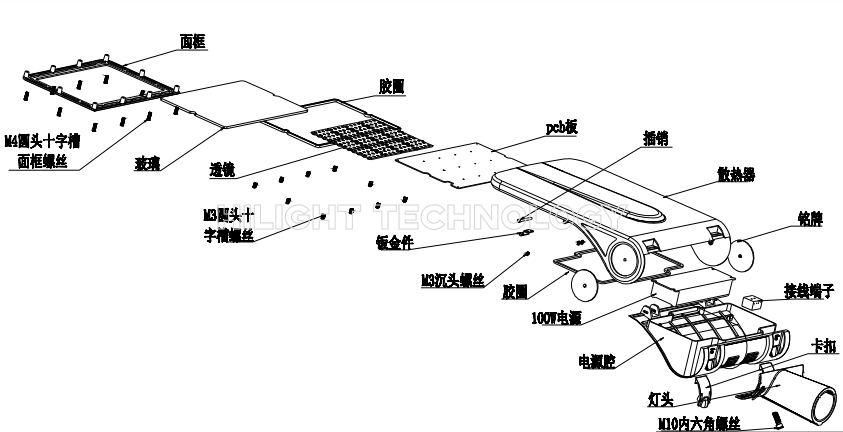

Explosive View:
Application:
Company Profile:
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2010 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM service with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 5-10 days for samples and 15 -20 days for big order such as 100pcs LED Street Lights.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for our standard led street lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defectives.
