Ski resort lighting project in Almaty of Kazakstan

A famous state ski resort in Almaty of Kazakhstan

The ski track is approx. 1.7km from the mountains to the foothills, altitude from 3191m to 2839m，
and there are hotels, restaurants, stores along the track.

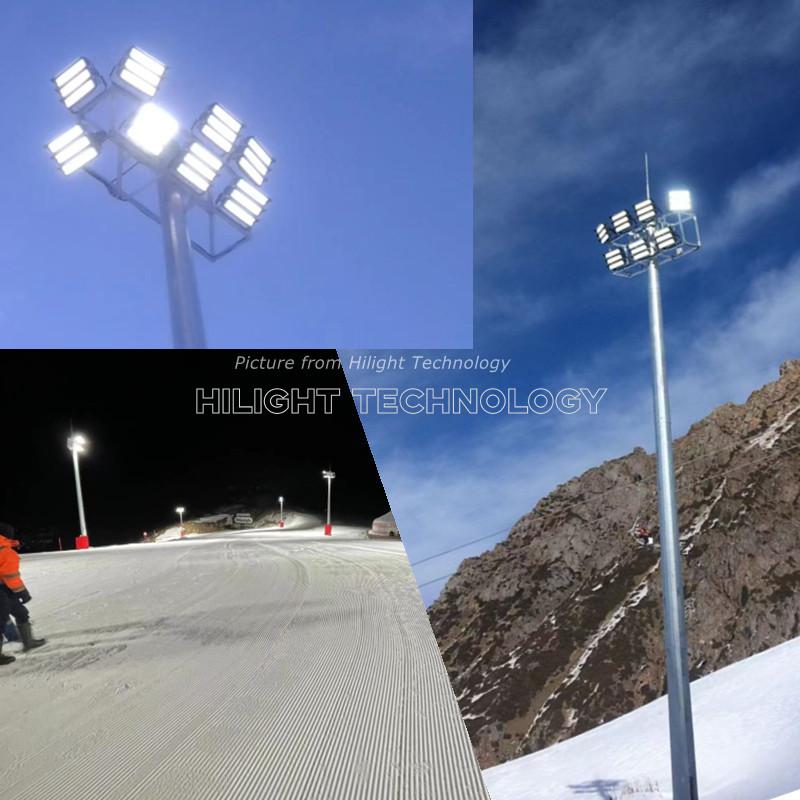

45 lighting poles stand at two sides of the track, distance from poles to the track center are 5mts to 35mts.
and height for the poles are 12mts or 15mts.

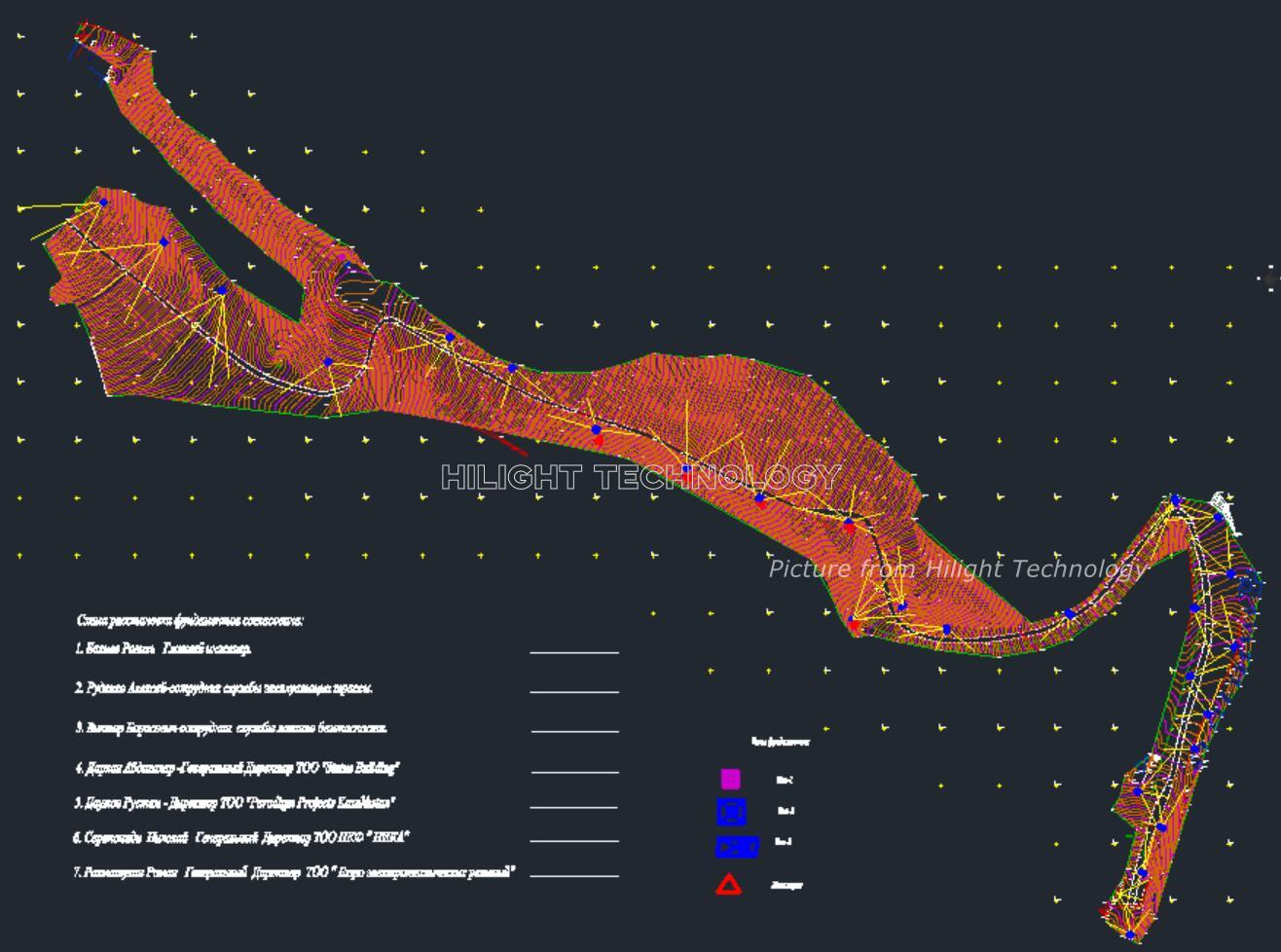

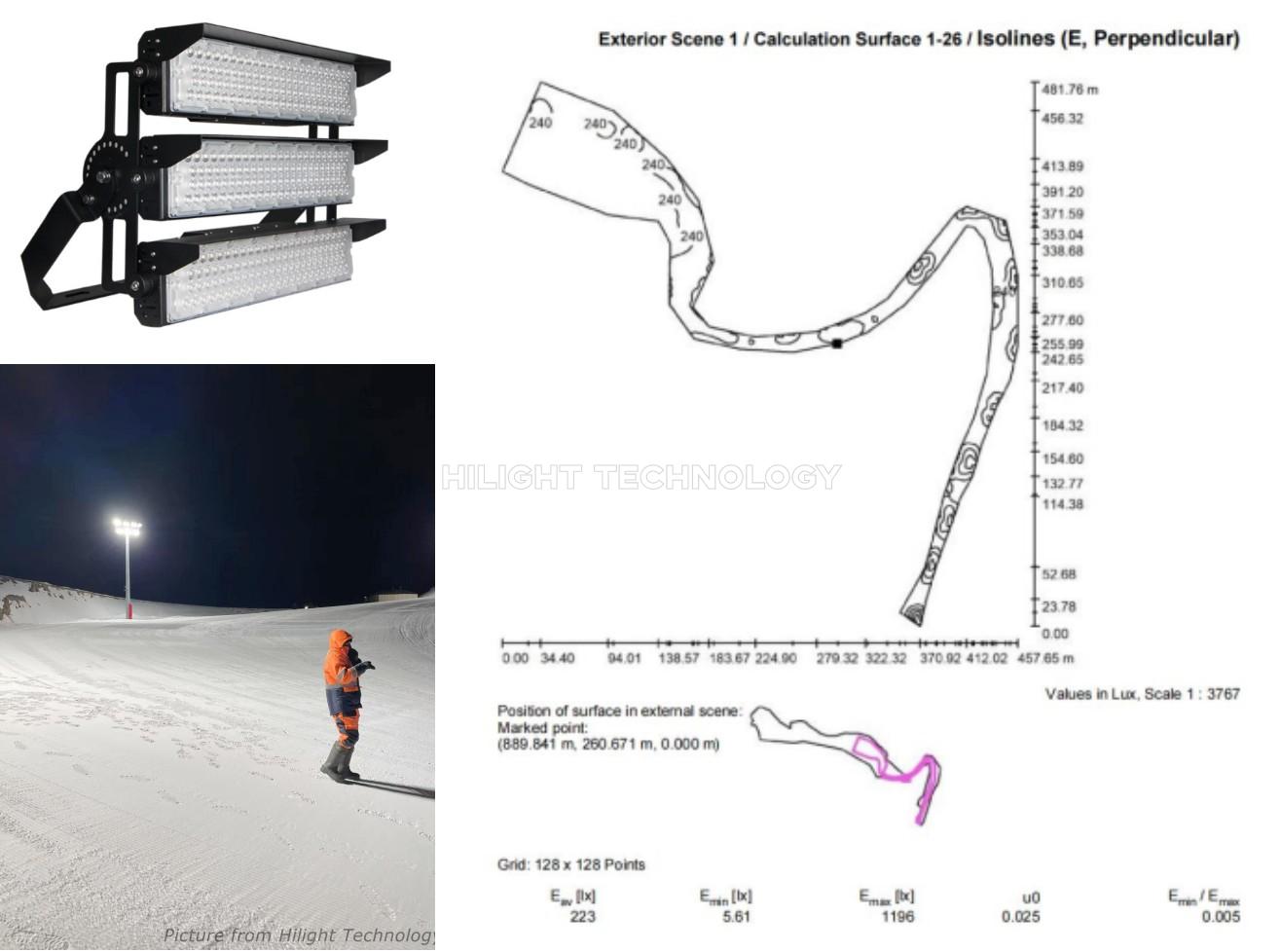

We made detailed Dialux simulation after deep communication to customer and provide solutions of by
600W & 800W high power led flood ights - SP9B series, efficiency 150-160LM/W made by Meanwell driver
and Lumileds 5050,5 years warranty, to get ave. 350lux. Beam angles are 20 degree, 40 degree and asymmetrical 50 degree.

600W & 800W mixed and 7-8 lamps on each lighting pole. Lamps with aysmmetrical 50 degree are mounted on
the top mountain because there is a huge flat area and gradual slope, and some stores and hotels there. Many
people like walking around, enjoy the scenery or have rest in hotels at this area. The lighting will not shine straight
people's eyes by aysmmetrical angle.

As per the steep ski track, the lamps are always mounted to light to the downside, so the lighting is always shine
athletes' backside.

At first phrase 186 pieces lamps have mounted from pole numbers 01-26 in 2021, and there will be another approx. 120 lamps
needed as the second phrace in early of 2022.

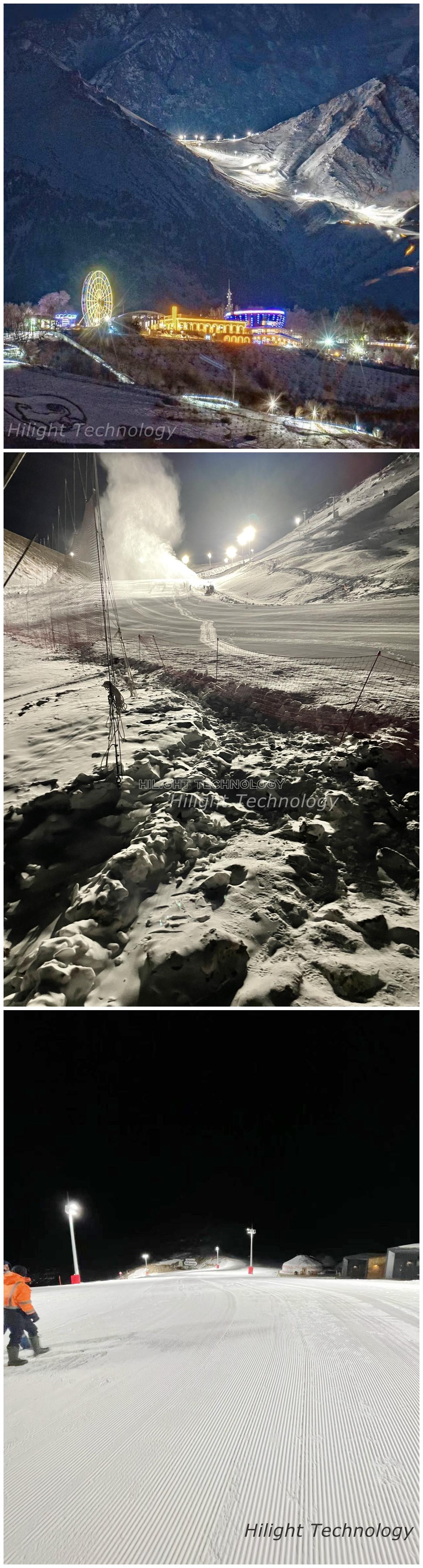

Owner and their friends from Frence are very satisified with the lighting effect, they said amazing many times and never see
the lights can be as bright as daytime, 100% better than other lighting places they have seen before.

A sucessful lighting case from a famous state ski resort in Almaty of Kazakhstan.
