Description

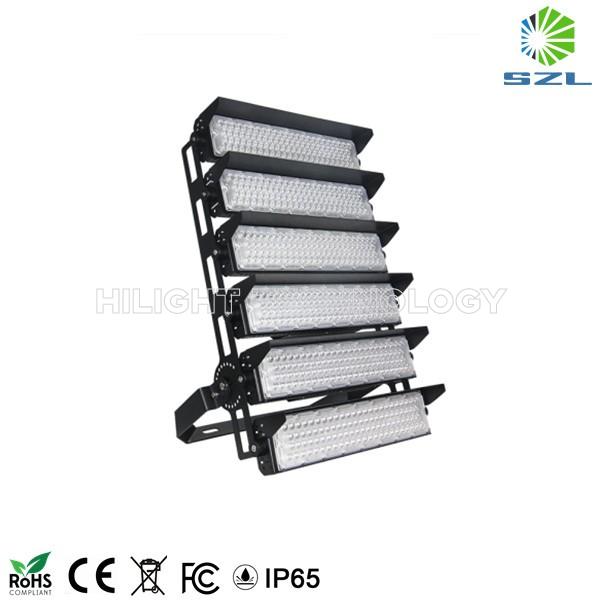

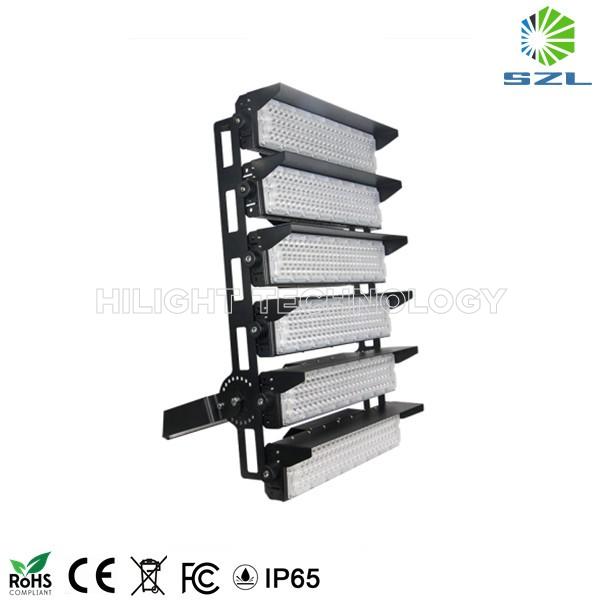

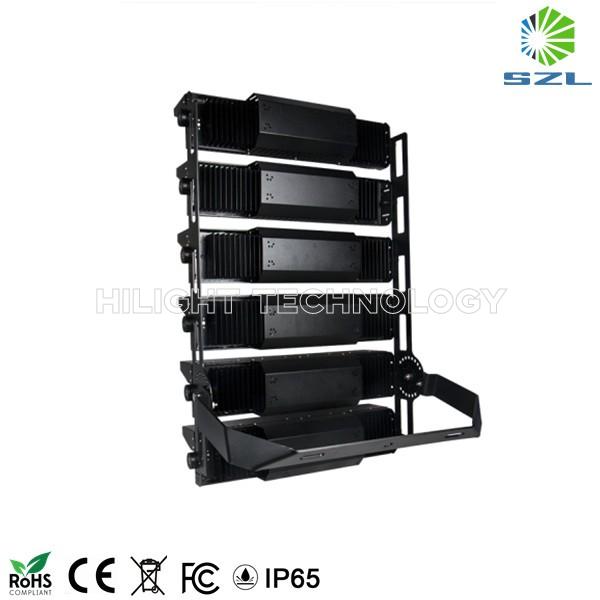

CE RoHS Meanwell driver 1500W led stadium flood lights
Main technical data:
Power
1450-1500W
LED Chips
Lumileds 5050SMD x 576pcs
Lamp driver
Meanwell ELG, Meanwell XLG
Surge protection (SPD)
10KV
Input voltage
AC100-305V / 50-60Hz
Color temperature
3000K, 4000K, 5000K, 5700K
Lighting efficiency
150-160LM/W
CRI
Ra>75
Beam angle
20°, 40°, 60°, Ays.50°
Defend grade
IP65 - IP66
Lamp dimensions
L. 630 x W.240 x H.950mm
Net weight
31KG
Packing
1pc/ carton, 33.5KG, 66x29x103cm
Quality warranty
5 years
Certificates
CE RoHS LVD EMC FCC ISO9001 GS
Application:
Widely used for stadium lighting,square lighting,garden,playground,tennis court,golf course,railway station,airport,seaport,ski resort etc. We have successful cases to share if you contact us, such as football field lighting,tennis court lighting, ski resort lighting etc.
Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.
Our workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 5-10 days for samples, 10-20 days for 100pcs, 20-30 days for 500pcs.
Each Lamp pass 24 hours aging test and high voltage (10KV) surge test.
Our Services:
1. For all your inquires, we will reply in 24 hours;
2. Outstanding design team offer professional advice;
3. Export to more than 60 countries in recent 10 years;
4. Export ports Shenzhen, or Guangzhou;
6. Discount available for bulk order;
7. Mainly Osram, Bridgelux, Lumileds LED chips, MW, Sosen, MOSO, Inventronics, HT, DONE drivers.
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door.
By trian, by air or by sea for bulky order.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2010 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 5-10 days for samples and 15 -20 days for big order such as 50pcs LED stadium lights.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for our standard led stadium lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defectives.
